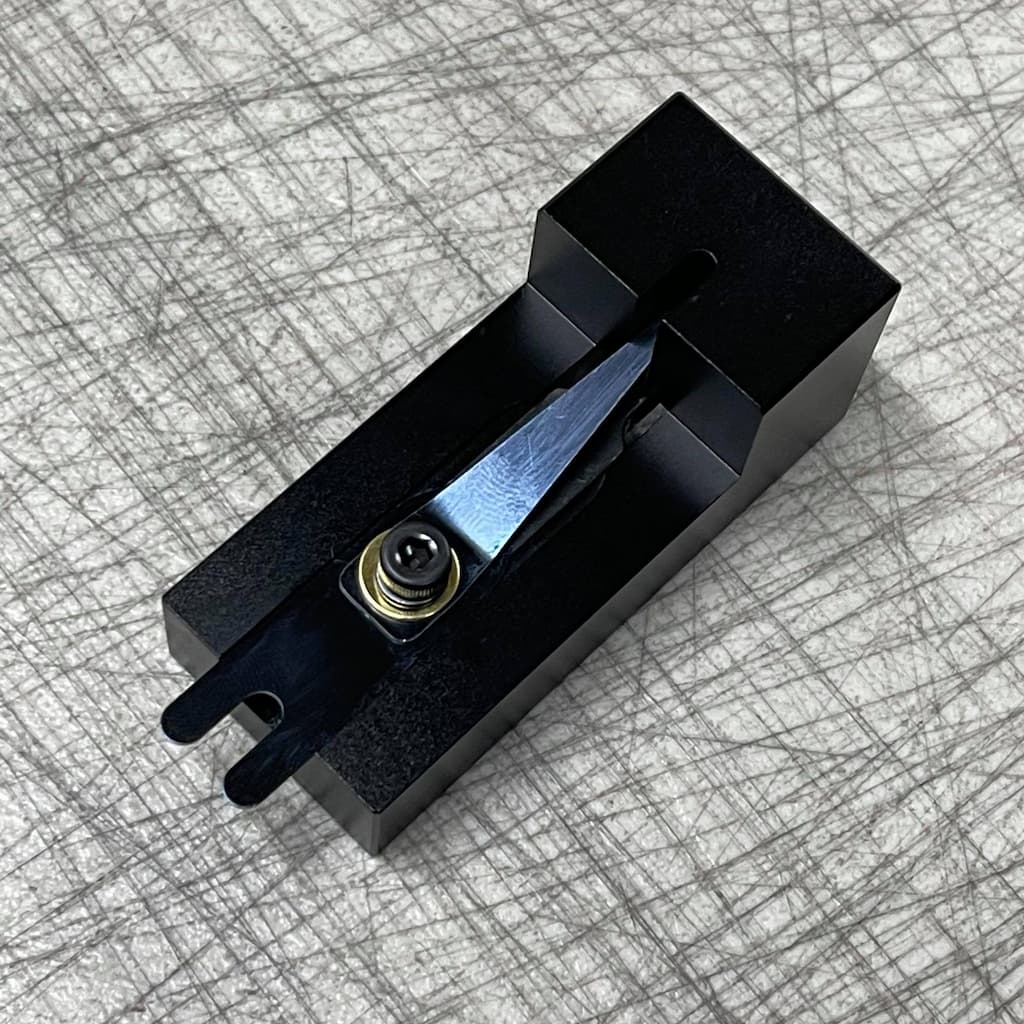

This jig is used to attach the armature bar and spring in a straight line. Among machine parts, springs are the parts that wear out the most. They need to be adjusted periodically and replaced if necessary. In such cases, misalignment of the axis can cause machine trouble. By using a jig, it is possible to accurately grasp the center point and angle and screw them firmly in place. This is recommended not only to save time in assembling the spring set, but also to prevent machine trouble. The size of springs that can be used is up to 13 mm in width.
【Specifications Material: Aluminum (black anodized) Spring size: Maximum width 13 mm
