ACUS M1 Ayre
ACUS M1 Ayre
SKU:M1OA
ACUS Tattoo Machines has collaborated with the famous British tattooist "Oliver Ayre", a master of black and gray, The signature model "ACUS M1 Ayre" is now available!
The difference between the M1 and M1 Plus is that the body and grips have been newly redesigned in a luxurious silver color, and the set comes with two types of grips, 33mm and 40mm.
Also, while the M1 and M1 Plus came with different drive heads (cams) as all-rounder machines, the Air is pre-set up with a 4.1 mm stroke drive head specifically designed for black and gray.

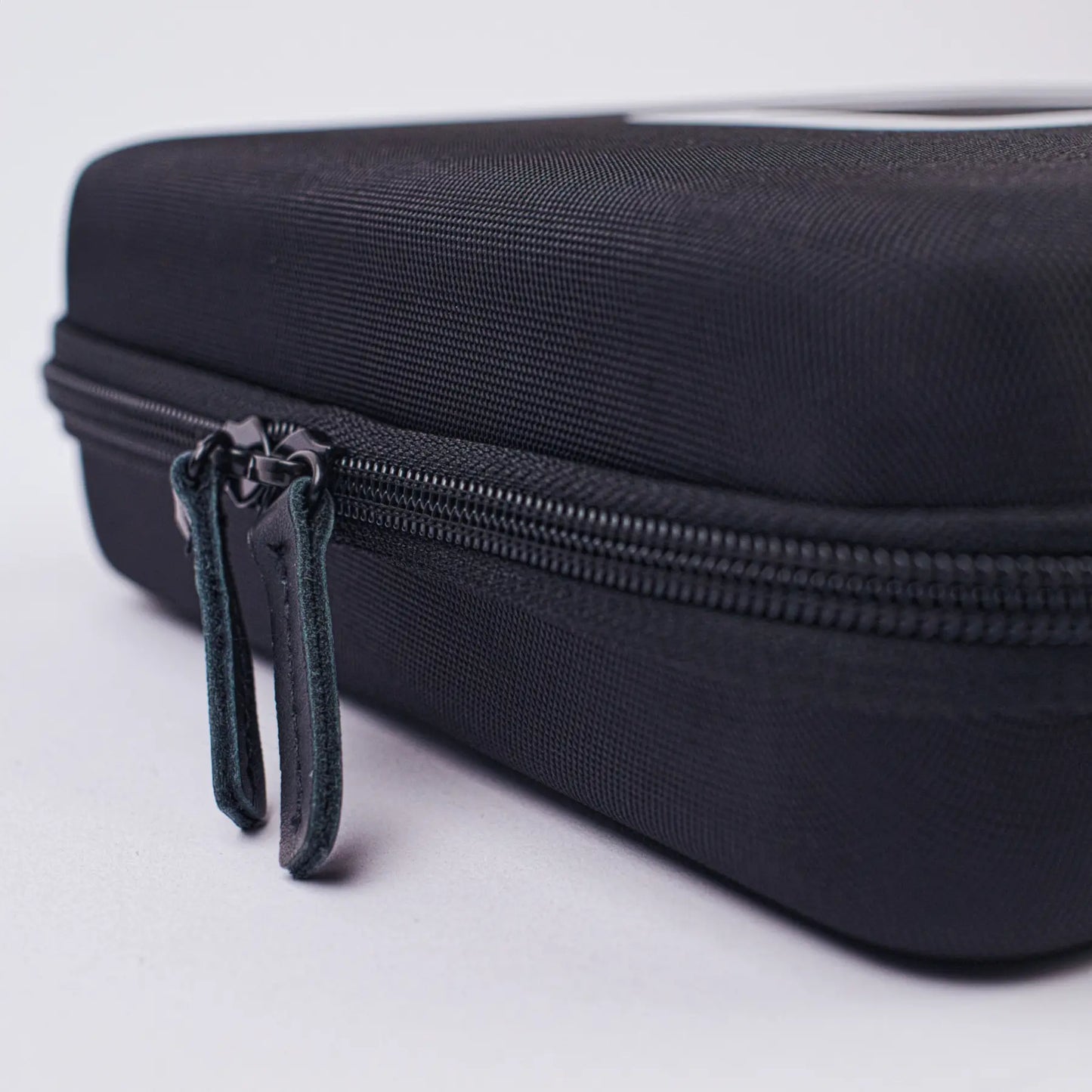

The travel case is even lighter and more compact. It also provides space for extra drive heads and lithium-ion batteries.

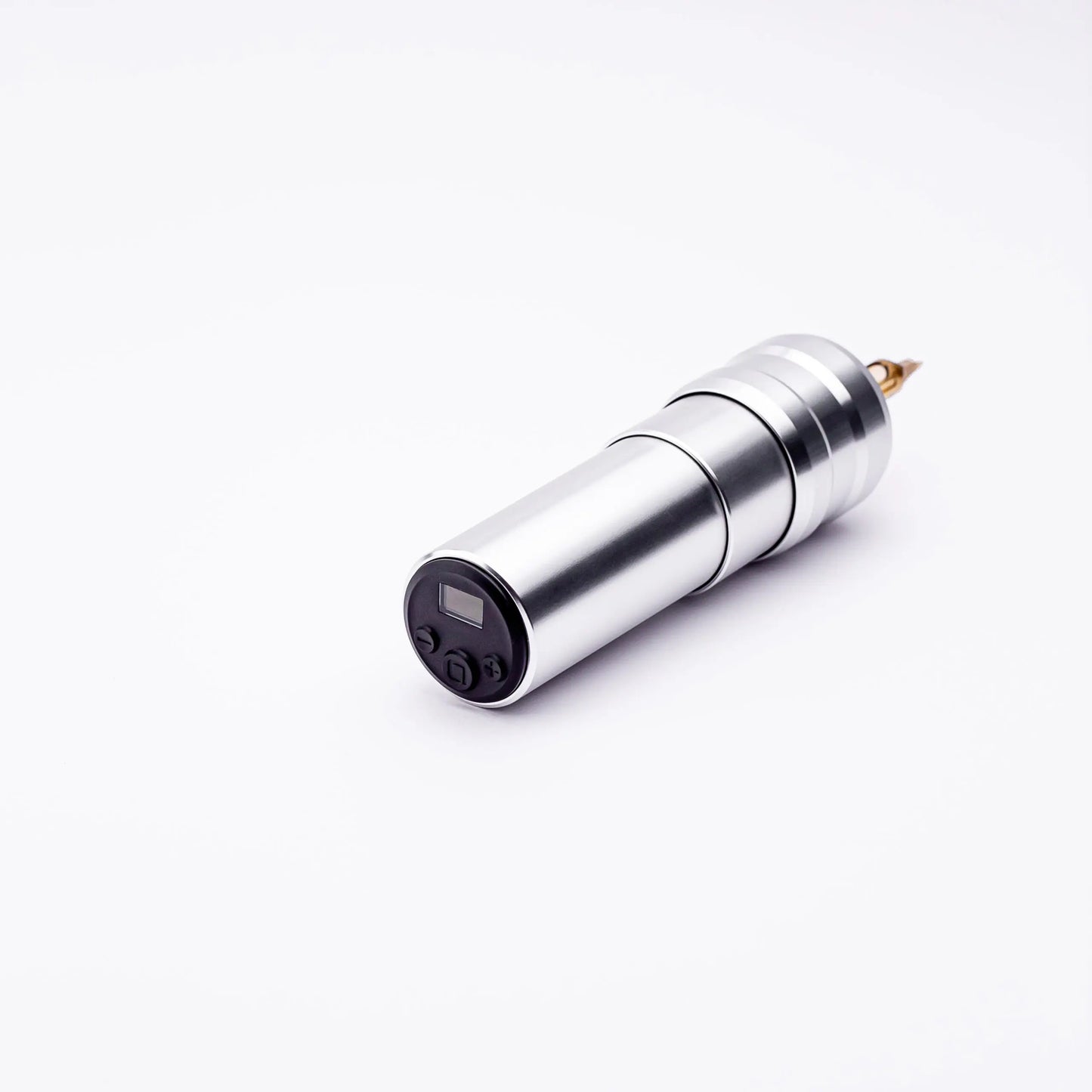

The machine itself is as high-performance as ever; just push the switch for ON/0FF. Press and hold the switch to change the voltage and motor mode. Full battery charge takes 3 hours. It normally runs the machine for about 5 hours and up to 11 hours.
The world's first fully digitalized motor
To control the FAULHABER (FAULHABER) brushless motors in the machine, we developed our own electronic circuitry and software. Using a special control algorithm, the motor can be adjusted at six different levels to suit your needs: like a small, delicate brushed DC motor, or like a large, powerful brushless motor.
The Hygienic Initiative
Based on the concept of thorough hygiene control, the machine can be easily disassembled. The inside is wiped clean and sterilized, and the solid anodized aluminum body is sterilized in an autoclave. These are often underestimated, but are very important for professional use. The problem of ink running into the pen-shaped machine is now solved.
【(technical) specification】
Stroke: 4.1mm
Length: 128mm
Weight: 207g (including battery and large grip)
Grip diameter: 33 mm and 40 mm
Frequency: 36 to 140 Hz
Needle Adjustment: 0~4.35mm
Color: Silver

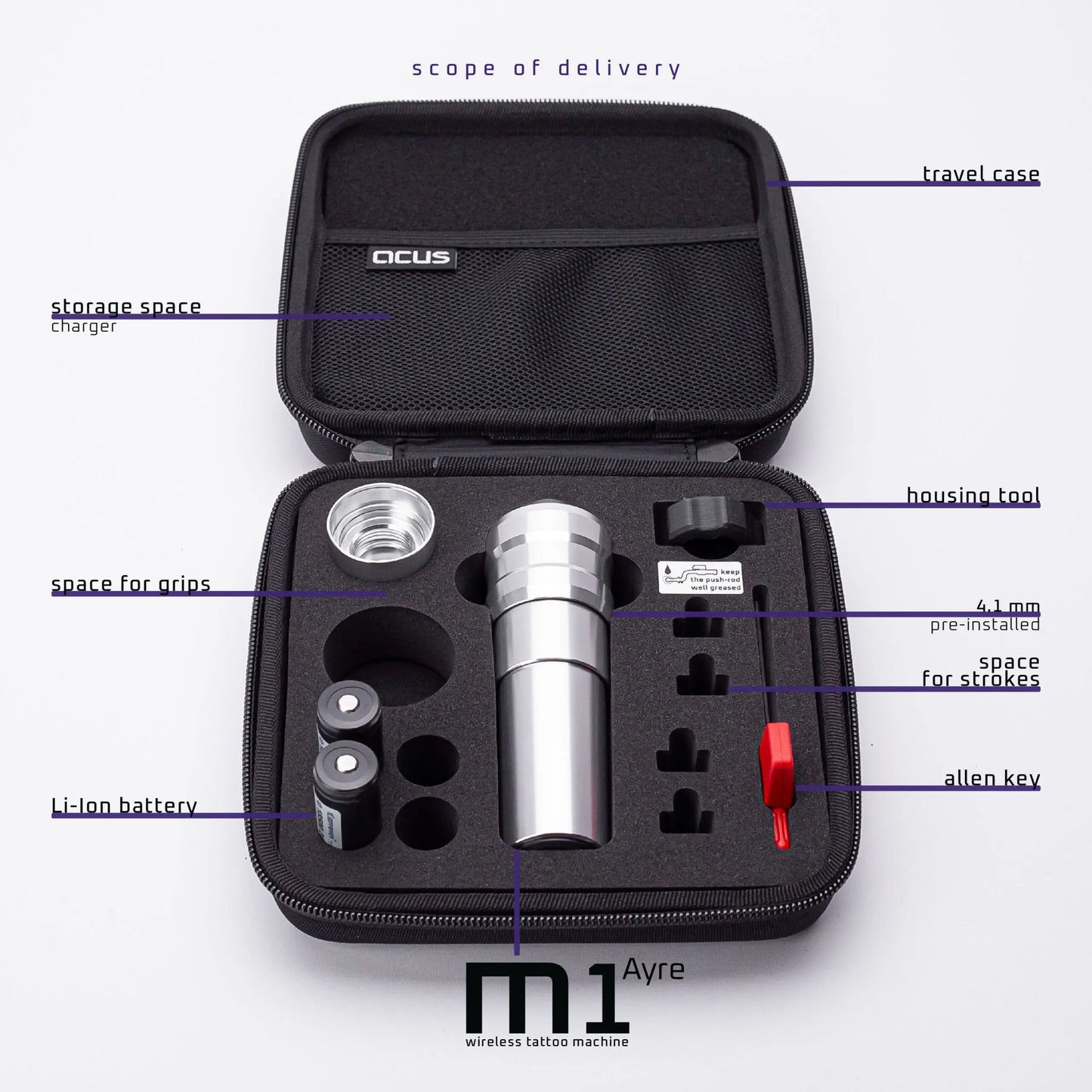

【attached】
Exclusive travel case
Housing Tools
Spare O-ring
Tool (key wrench)
Silicone grease (lubricating cream)
2 rechargeable lithium-ion batteries (size: 18500/capacity: 2000mAh/3.7v)
Battery charger
Charging cable (USB/AC adapter with 5V/2A or higher suitable for Japanese outlets is required)
Handling instructions manual
◎Oliver and Helge, founders of ACUS tattoo machines, worked as machine engineers at a well-known tattoo equipment manufacturer in Berlin. They became independent to create machines that they were satisfied with, and have been releasing their original machines since 2022.
