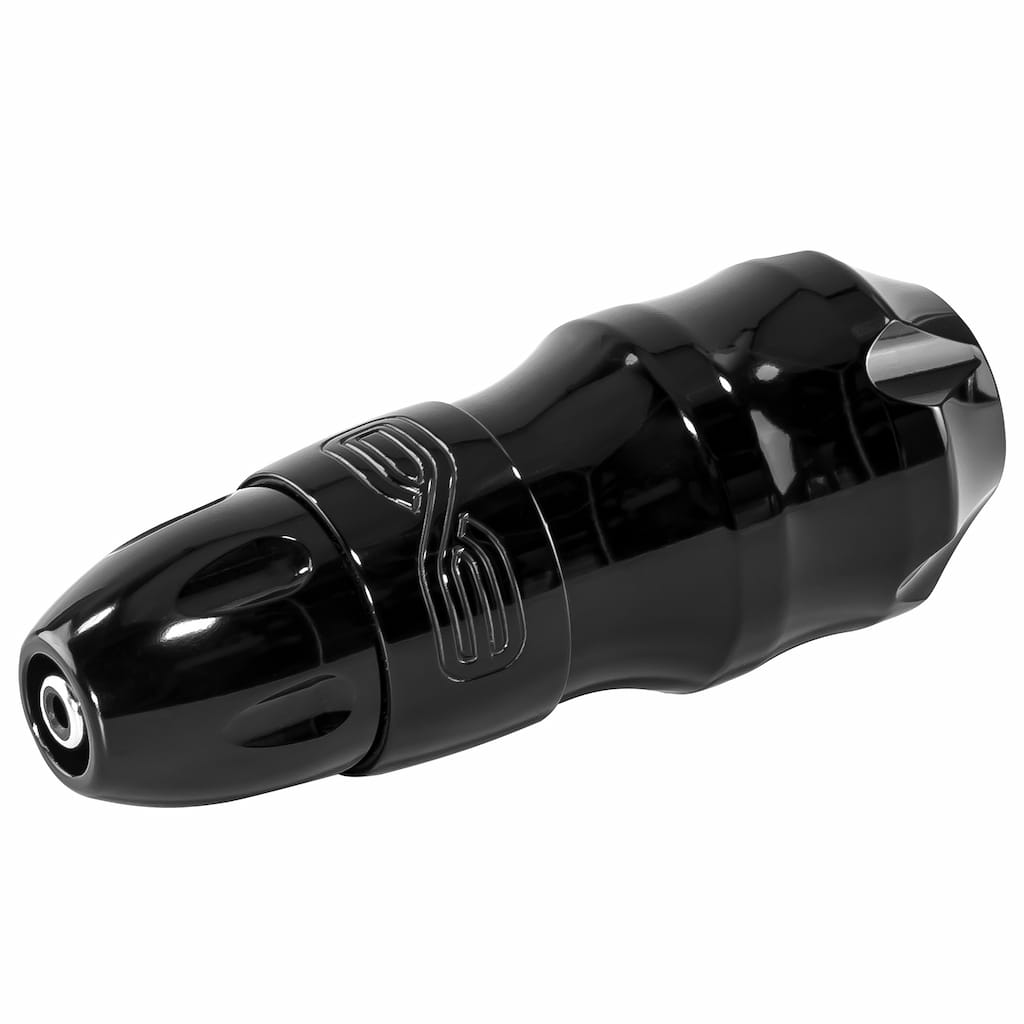

This is a battery set for EXO, FK Iron's first modular machine. There are three types of strokes and two colors to choose from.
The EXO is a multifunctional next-generation machine with a detachable power module that allows you to switch from wired to wireless operation, depending on your preference and environment.
Two Power Bottles are included, one to use while the other is recharged for the next use. The Power Bottle runs for up to 10 hours on a full charge.
The power module can be easily removed with a quarter-turn. Simply attach the included PowerBolt (PowerBottle) and it acts as a wireless pen rotary machine.
The PowerBolt has an LED indicator for remaining battery power and voltage, with three buttons to turn it on/off and adjust the voltage. The voltage can be switched from 5 to 12V.
The voltage setting is confirmed by the color of the LED lamp. When the up and down buttons are pressed, the light will be the same color as the 5 to 12 color indicated on the left. Flashing means +0.5V. To check the battery level, press and hold the power button.
Equipped with a 9-watt brushless motor, this machine is powerful yet reduces strain on the skin. As an ideal liner machine, it is ideal for uneven color packing and solid application of color.
The machine's center of gravity is placed forward to assist needle pressure, and the 40 mm diameter grip is ergonomically designed to prevent wrist and arm fatigue.
The grip is ergonomically designed to prevent wrist and arm fatigue. A ratchet click is heard each time the grip is turned, and the needle moves in 0.2 mm increments. It is recommended that the grip be used with a barrier and autoclaved after use.
[Stroke (not interchangeable)
2.5mm / 3.2mm / 4.0mm
Color】 【Color
STEALTH: Jet black with a glossy finish
BLACK OPS: Matte black without luster
Specifications
PowerBolt 2 pcs.
Voltage: 5 to 12V DC
Frequency: 25 to 160 Hz
Body size: 35 mm (diameter) x 125 mm (length)
Weight: Approx. 189g
Charging cable: USB Type-C
USB Type-C cable for charging
Not compatible with Killswitch (wireless footswitch)
Bluetooth compatibility; can be paired with Darklab app
◎ Plastic parts may be deformed when autoclaved, so sterilization with "Ganesha Hachiroku (water-activated chlorine dioxide)" is recommended.
FK Irons (FK Irons) is a manufacturer of state-of-the-art tattoo machines and devices founded in Miami by tattoo artist and machine builder Gaston Siciliano.
Manual (PDF - English)
