FK Irons Stealth PowerBolt II

FK Irons PowerBolt II

FK Irons' PowerBolt II is a pioneering device in the next generation of wireless batteries.

While conventional PowerBolts use LEDs to indicate their settings, the PowerBolt II is very easy to understand and operate, with a digital display that shows all settings. The built-in motherboard controls the machine as configured.

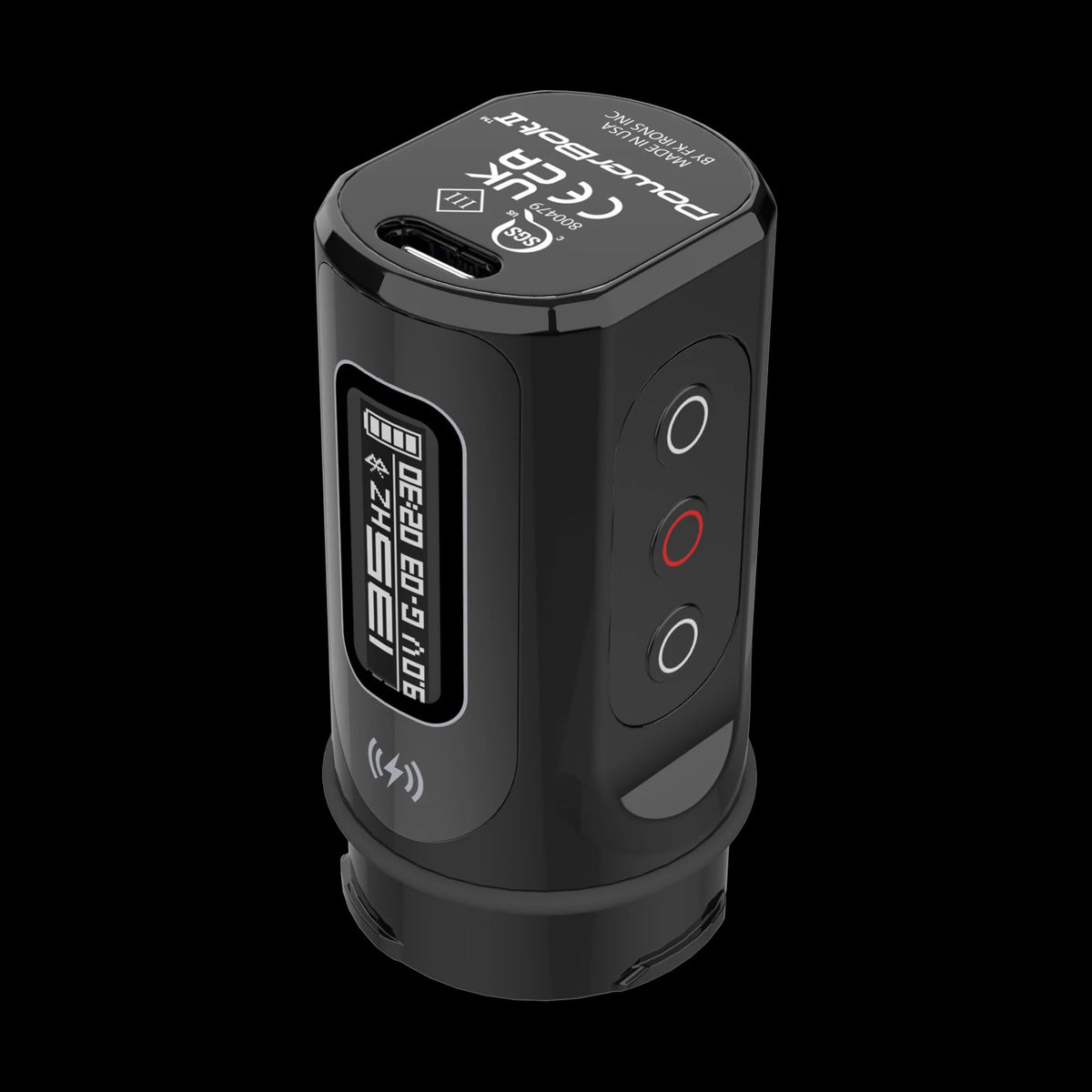

To operate it, you simply press three buttons. To open the menu screen first, press and hold the red button in the center for three seconds. Then use the up and down buttons to select an option, and press the red button in the center to confirm. For left-handed artists, the orientation of the screen can also be selected.

The display screen shows power level (Hertz/volt), battery level, eGive level, Bluetooth, and timer.

◎Power Level (Hertz/Volt)
For greater accuracy, both Hertz (transformer) and Volts (voltage) are displayed. In this case, you can choose whether the main display is in Hertz or volts. Volts can be adjusted from 4 to 12V in increments of 0.1 or 0.5. The minimum value of 4V is ideal for the dot-like style. Increasing the value will speed up the machine.

◎eGive
This function allows the user to set the hit pressure in 3 levels: 1=soft, 2=medium, 3=hard, 0=disable.

Bluetooth
When Bluetooth 5.0 is turned on, it pairs with FK Iron's wireless footswitch (Killswitch Wireless Footswitch). When the footswitch is not in use, turn it OFF to save power.

◎Timer
Recommended for artists who work by the hour. You can record session time and set a stop timer.

◎Battery level
A battery icon is displayed. The number of bars is 4=100%, 3=75%, 2=50%, 1=25%.

◎Battery
The battery takes 2 hours to fully charge and can run the machine for an average of 5 to 6 hours. The included USB-C charging cable is for charging only. Wired (wired) use with the cable connected is not possible.

Specifications
Size: 30.5 mm in diameter × 58.5 mm in length
Weight: 30g
Voltage: 4 to 12V
Frequency: 66 to 199Hz
Charging: USB-C
Compatible with FK Iron's wireless machines "Flux Max", "EXO", "Flux" and wireless footswitch (Killswitch).

◎ Instruction Manual (English)
