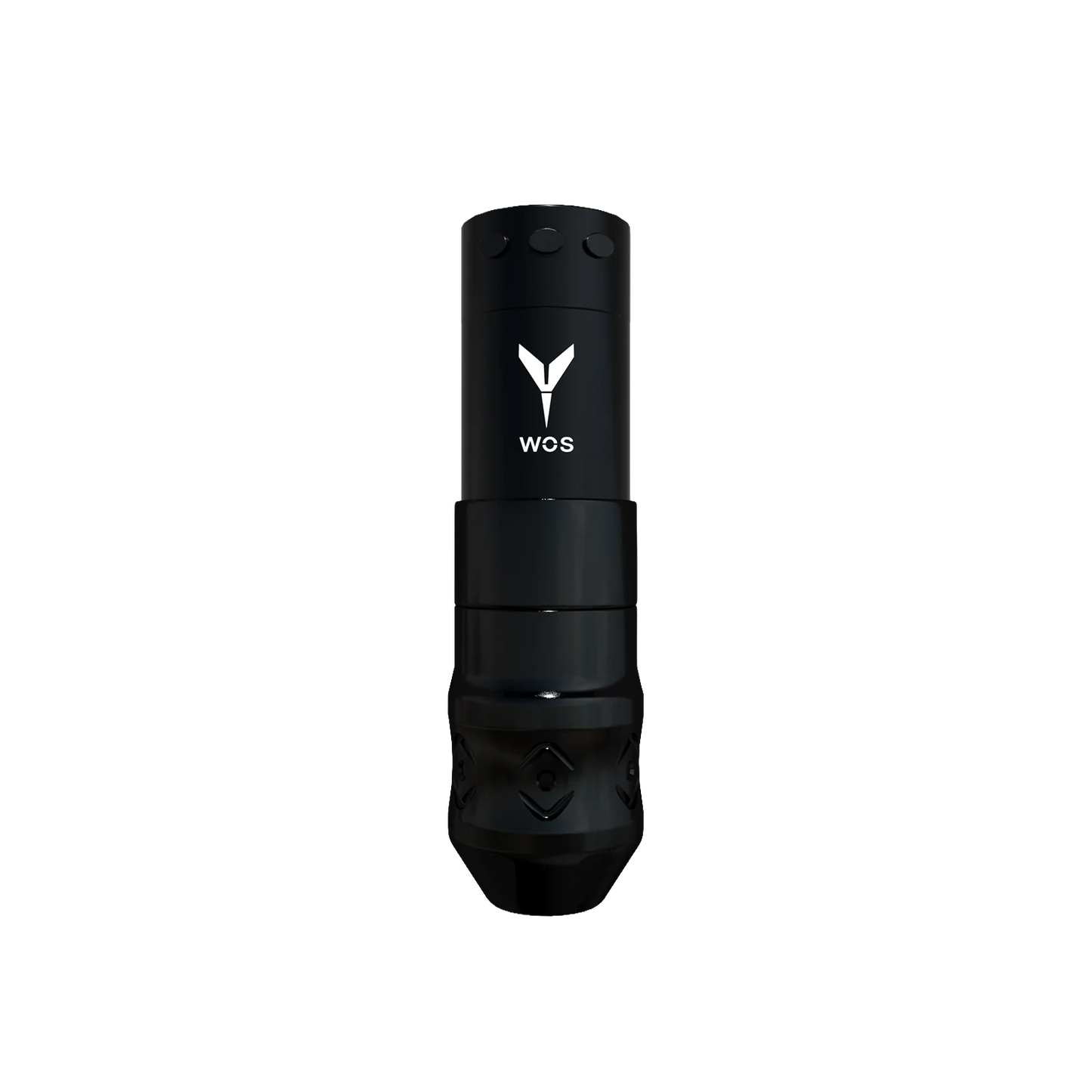

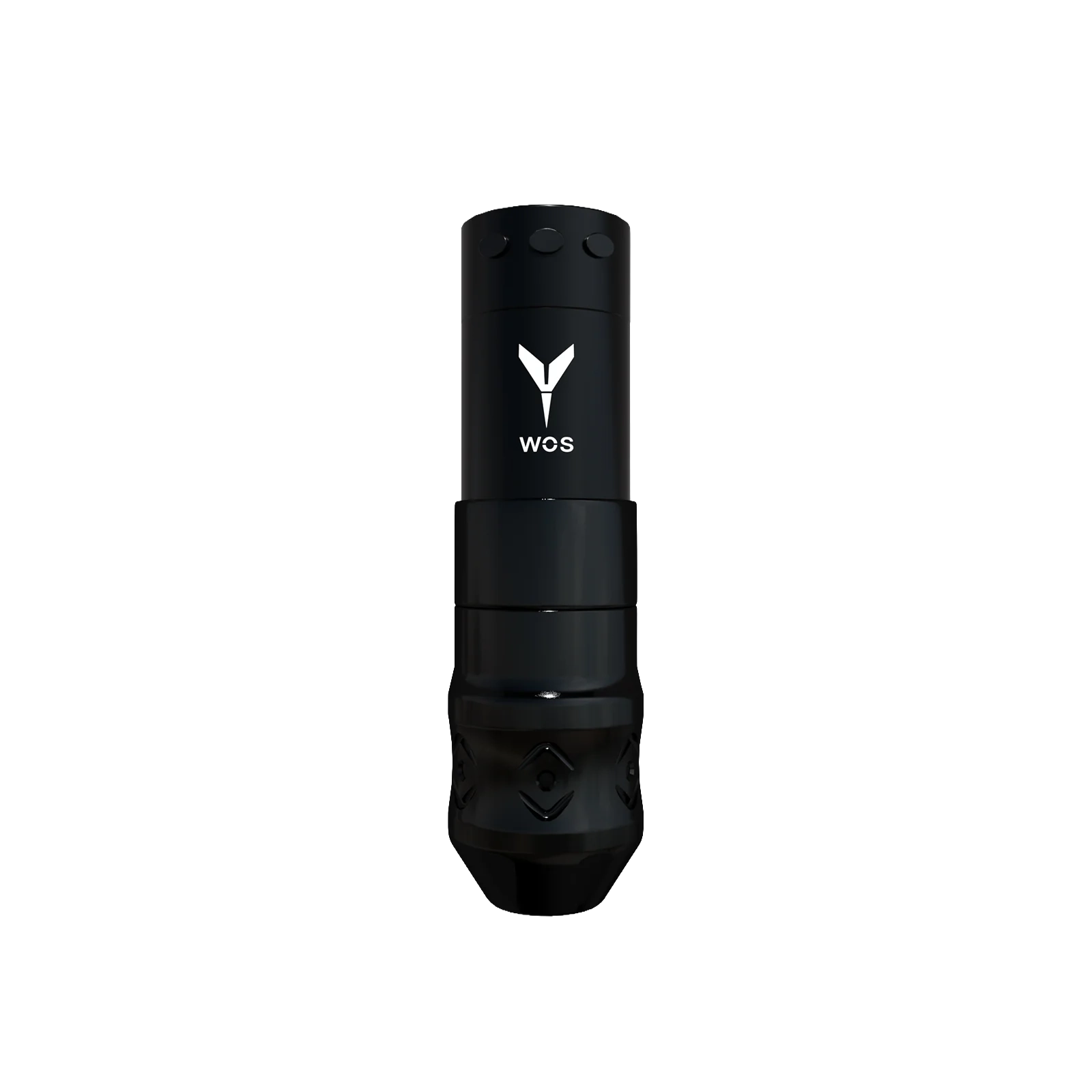

WOS E80 Wireless Tattoo Pen

WOS E80 Wireless Tattoo Pen (2025 Model)

Engineered to adapt to a wide variety of tattooing styles, the WOS E80 allows artists to seamlessly modify settings for each individual piece or fine-tune the machine to find their own perfect setup.

Customization Settings

• Adjustable Stroke Length: Fully adjustable from 3.0mm to 5.0mm using the integrated adjustment screw.
• Soft Bag System: Includes 6 interchangeable soft bags (rated 0/1/2/3/4/5), offering precise 6-stage control over needle give and rebound distance to match your preference.
• Two Interchangeable Grips Included:
  • 33mm Grip: Ideal for realism and delicate detail work, ensuring highly precise and accurate operation.
  • 38mm Grip: Tailored for large-scale pieces, providing a solid, confident hold and exceptional stability.

Dual Operation Modes

• Normal Mode: 4.5V – 9.0V (Frequency range at 4.5V: 38Hz – 140Hz)
• Hertz Mode: 3Hz – 88Hz (Voltage adjustment range: 6.0V – 8.5V)

High-Performance Motor & Battery

• Redesigned Motor: Engineered with higher torque parameters than conventional models, significantly extending overall durability and lifespan. The motor features a lifetime maintenance-free guarantee.
• Premium Panasonic Batteries: Equipped with dual Panasonic (18500) batteries, providing up to 10 hours of continuous runtime per battery. Comes standard with 2 batteries (including one spare) for all-day performance. Fully recharges in approximately 2 to 3 hours.

Display & Tactile Interface

• Physical Buttons: Replaced touchscreen functionality with clear, responsive physical buttons on the color display, eliminating accidental touches and ensuring smooth settings adjustments mid-session.
• Integrated Timer: Features a built-in timer function that automatically calculates and tracks active working time.

Technical Specifications

*Warriors (WOS) Tattoo is a professional manufacturer and equipment brand specializing in the research, development, and production of advanced wireless tattoo machines.
